Laser mixing machine

Mingxing laser MX1325 laser machine is a kind of mixed laser cutting machine for thin metal and non-metal, metal can cut stainless steel, carbon steel, non-metallic materials including wood, plywood, MDF, acrylic, plastic, fabric, leather and paper; The whole body mechanism of the series is welded by square tube. After vibration aging and natural aging treatment, the Y-axis guide rail is laid on the structural surface of the bed and finished by gantry milling. The X axis aluminum profile of the body is a thickened 808 profile with reasonable design, high strength and permanent deformation.


Technical parameters:


Effective working format :1300mm×2500mm (4'x8', 48"x96").

Laser power :150W.

Engraving speed :0-64000mm/min.

Cutting speed :0-36000mm/min.

Resolution :≤4000dpi.

Power supply :AC220V±10%, 50HZ.

Positioning accuracy :<0.01mm.

Total power :< 2000 w. Operating temperature :0°C-45°C.

Support graphics formats :BMP, AI, PLT, DST, DXF.

Platform: blade platform.

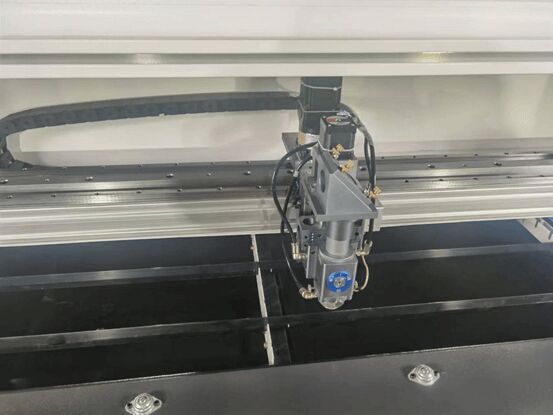

Laser mixing machine (2).jpg

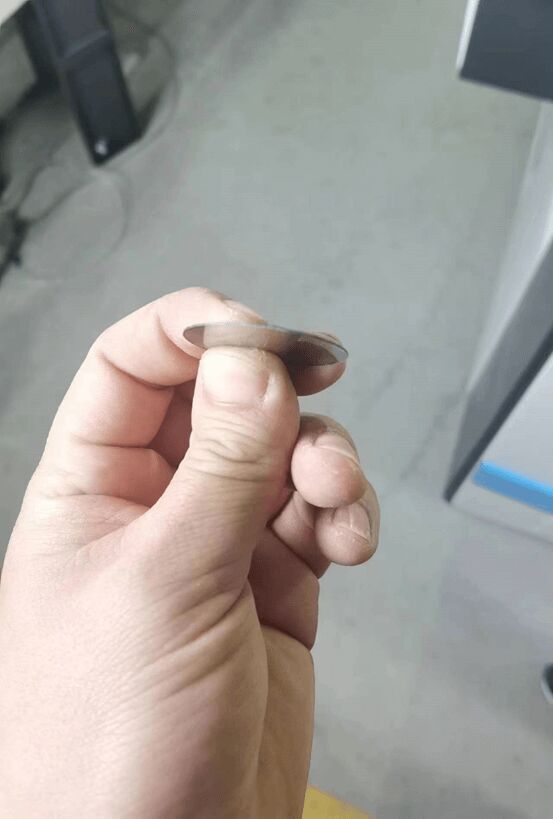

Laser mixing machine (3).jpg

Product advantages:


1. Mixed cutting: The metal and non-metal mixed cutting machine supports metal and non-metal cutting, can cut stainless steel, carbon steel, low carbon steel, can also cut acrylic, wood, medium density fiberboard, PVC board, paper, cloth and so on.

2. Advanced LCD screen matching professional cutting software, written for metal and non-metal cutting, user-friendly design, portable operation, support for any computer operating system.

3. Large file storage space: it can store the cutting and engraving files 128M in the metal and non-metal mixed cutting machine, compatible with AutoCAD, CorelDraw, Photoshop and some other types of graphics processing software.

4. Imported high-precision linear guide rail and professional optical system, dust and lubrication, thus improving the quality of engraving, prolong the life cycle of metal and non-metal mixed cutting machine.

5. Alarm protection and cooling water system, using chiller temperature display, can avoid excessive combustion, to protect the circuit and water circulation line.


Application field


Suitable materials: metal and non-metal mixed cutting machine suitable for processing stainless steel, carbon steel, steel plate, iron plate, acrylic, plastic plate, wood and other metal and non-metal materials;

2 Suitable for industry: gift models, acrylic products, signs, furniture toys, flooring, advertising display, hardware tools, advertising signs production, metal crafts, mechanical parts, instrument and electrical parts, saw blades, spring pieces and other industries can use the metal non-metallic laser cutting machine.
