What is CO2 laser machine?

Co2 laser engraving cutting machine is the use of CO2 laser technology engraving cutting machine, this kind of laser equipment is a general model, after focusing mode, small volume, high degree of integration.The principle of laser engraving cutting is that the laser beam is transmitted and focused on the surface of the material by the optical mechanism, and the material at the point of application of the laser beam with high energy density is rapidly vaporized to form a pit point.

The computer control X-Y console drives the laser head to move and controls the laser switch according to the requirements. The image information processed by the software has been stored in the computer in a certain way. When the information is read from the computer in order, the laser head scans back and forth line by line along the scanning trajectory from left to right from top to bottom. When a "1" point is scanned, turn the laser on. When a "0" point is scanned, turn the laser off. The computer stores information in binary, which coincides with the two states of the laser switch.

Co2 laser engraving cutting machine is suitable for most non-metallic materials marking, such as paper packaging, plastic products, label paper, leather cloth, glass ceramics, resin plastic, bamboo and wood products, PCB board, advertising processing, gift processing, packaging engraving, seal engraving, product marking, seal engraving and many other industries.

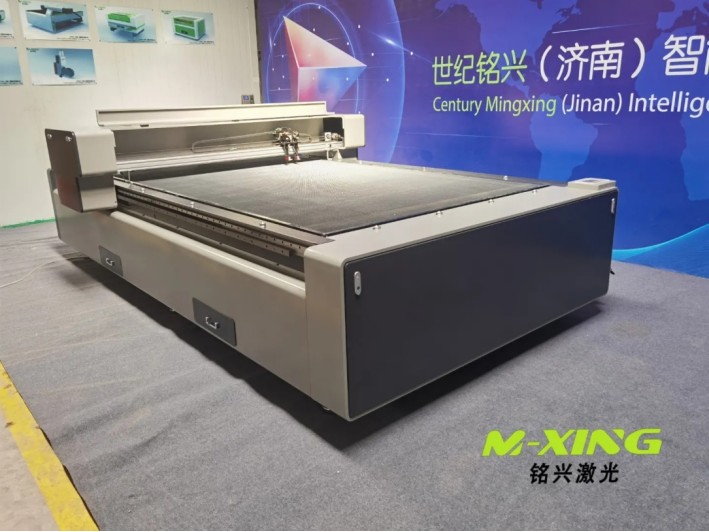

Laser engraving cutting machine introduction

The Best Laser engraving cutting Machine in INDIA

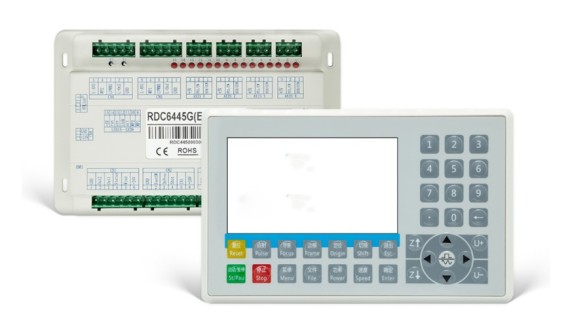

Ruida co2 control system 6445

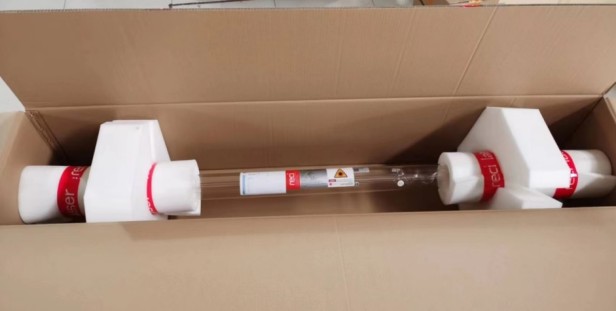

Reci laser tube

The power of laser tube is currently commonly used 80W, 100W, 130W, 150W, 180W, 200W, 300W, according to the different needs of customer engraving and cutting materials to choose the right power of laser tube

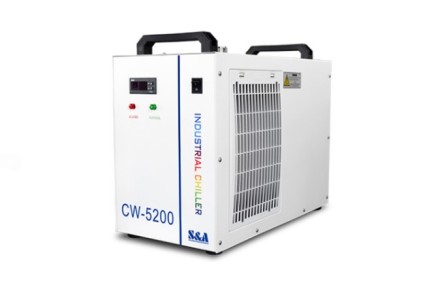

Water cooling machine

The water cooler plays the role of water cooling the laser tube, cooling the laser tube and preventing the rupture of the laser tube caused by too high temperature. Water cooler is divided into CW3200, CW5000, CW5200, CW6000, CW6100. Choose different types of water cooler according to the power of different laser tubes.

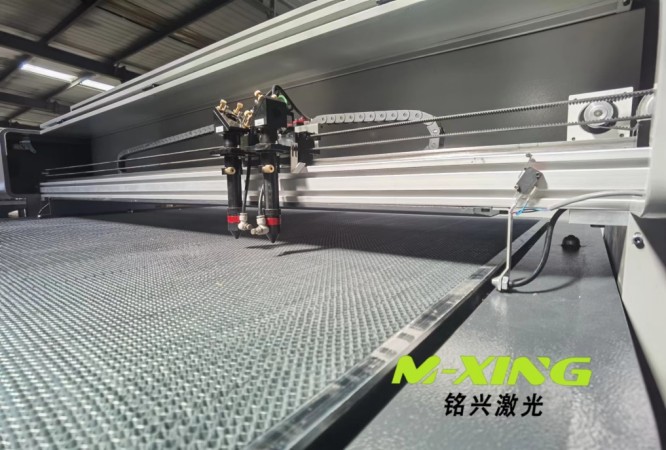

Double-head intershift laser head



Cellular table

Laser machine table blade and honeycomb, if you want to cut soft material can choose a honeycomb table.

The laser machine cuts the sample:


Warranty and service


  1. 12 months guarantee of the whole machine, provide consumable parts at an agency price when you need replacement.

  2. 12months for Laser Tube

    Main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

  3. Software is on update for free whole life.

  4. Our engineer could support you technology to your country if necessary.

  5. Our engineer could service on weekend even on vacation.

  6. Our engineer could train you in our factory for free.

  7. Our engineer could service you 24 hours online by E-mail,Skype, whatsapp,yahoo, msn, QQ, or by phone.

  8. English manual and CD video for machine using and maintaining will send to you with the machine.


More laser machine questions please contact us, we will be the first time to arrange professional sales staff to answer you, thank you.
