  • 1KW MX-3015 fiber laser cutting machine

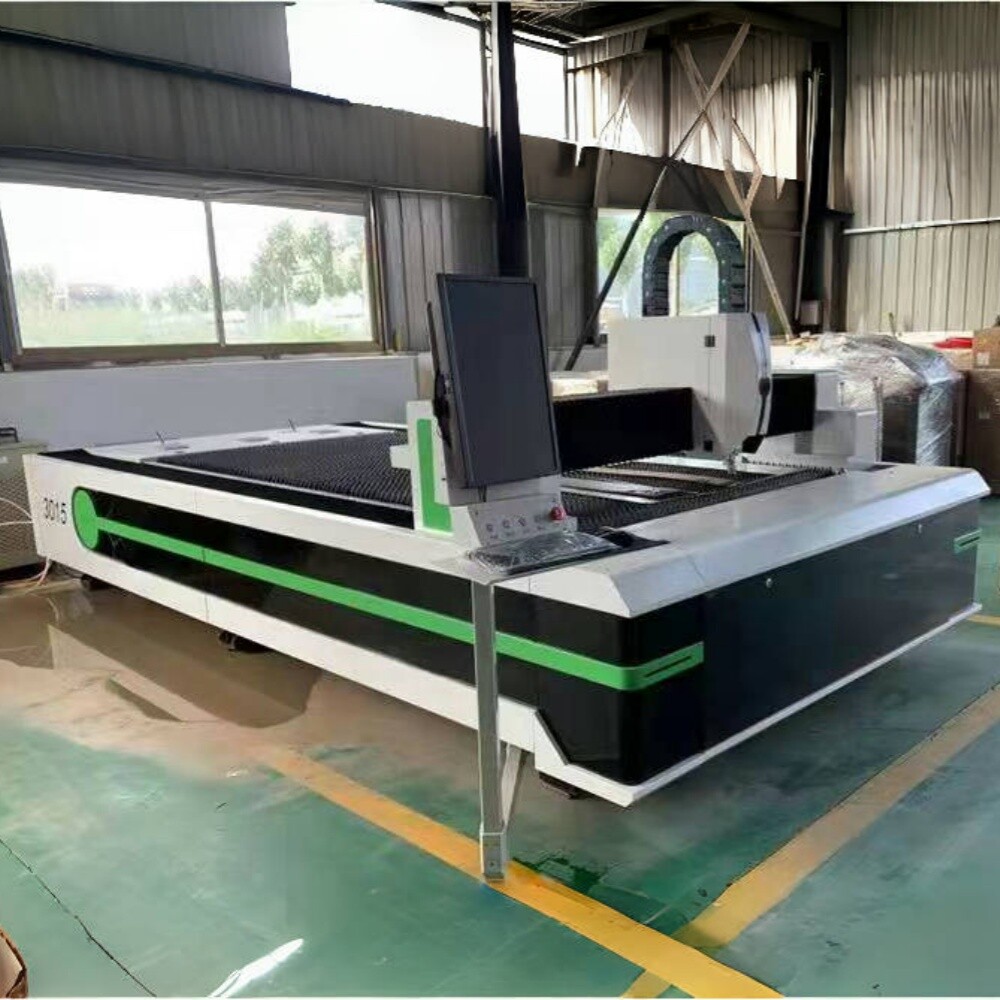

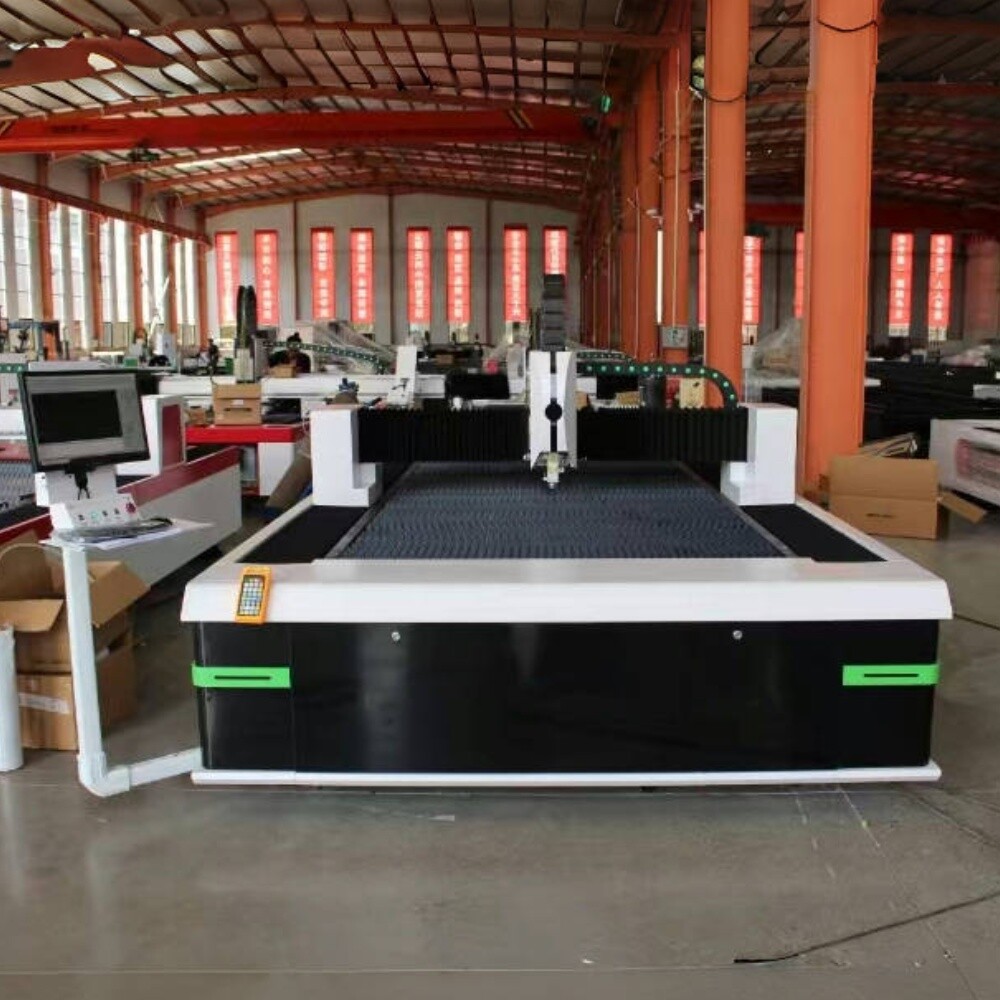

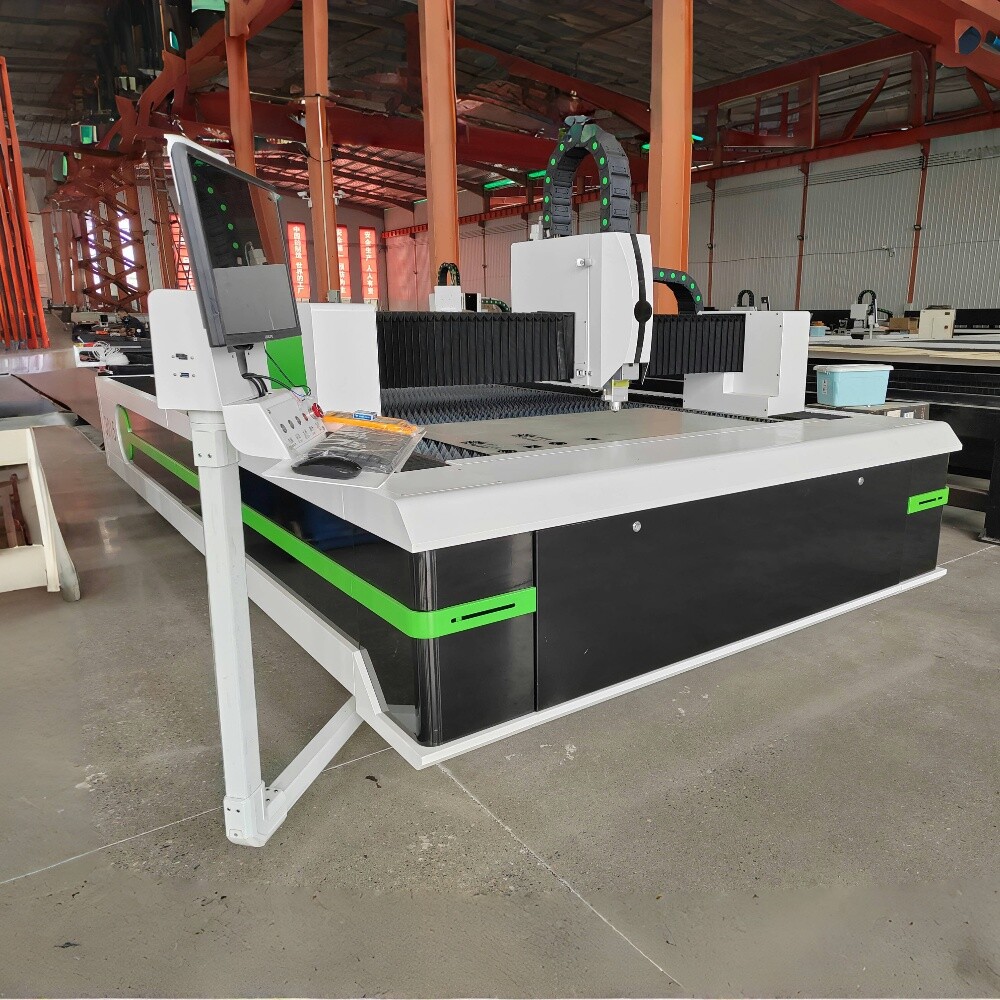

1KW MX-3015 fiber laser cutting machine

E-mail:sales@mxinglaser.com

              sales1@mxinglaser.com

Tel:+86 13188882190

        +86 15614692196

Whatsapp:+86 13188882190

                    +86 15614692196

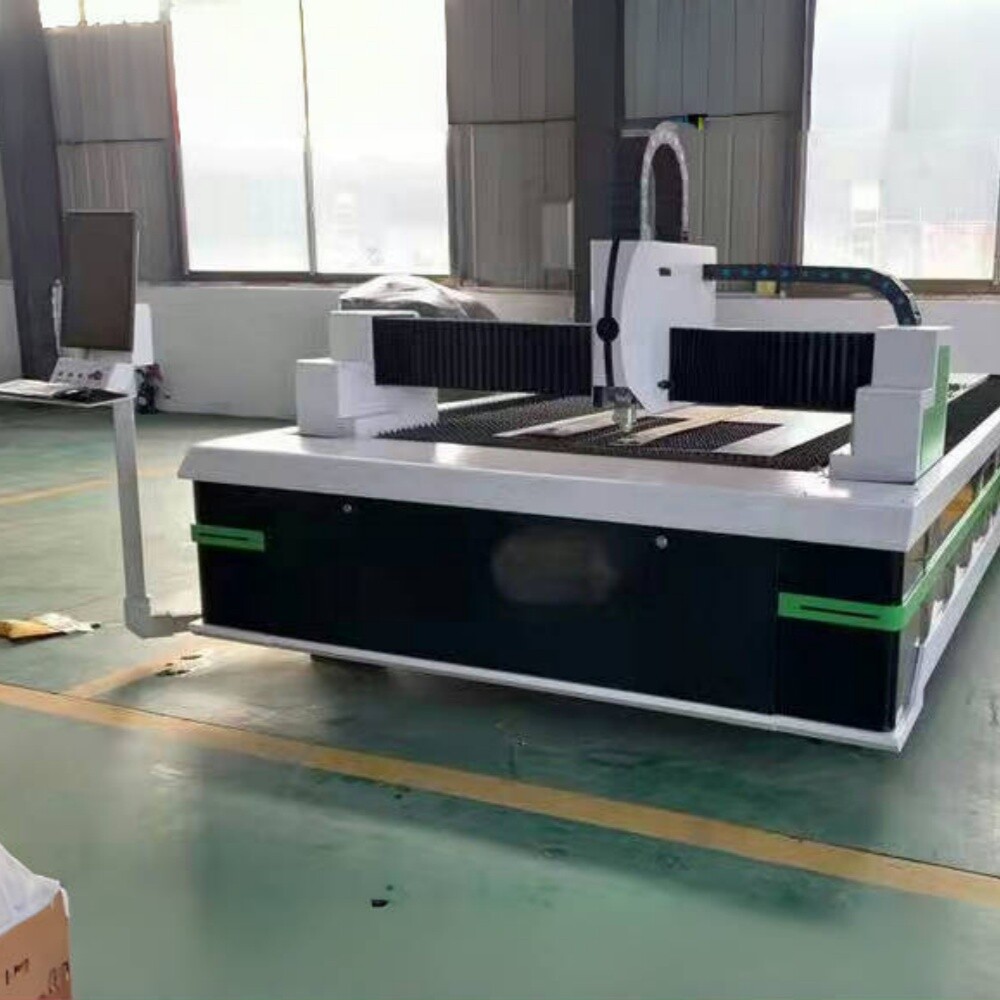

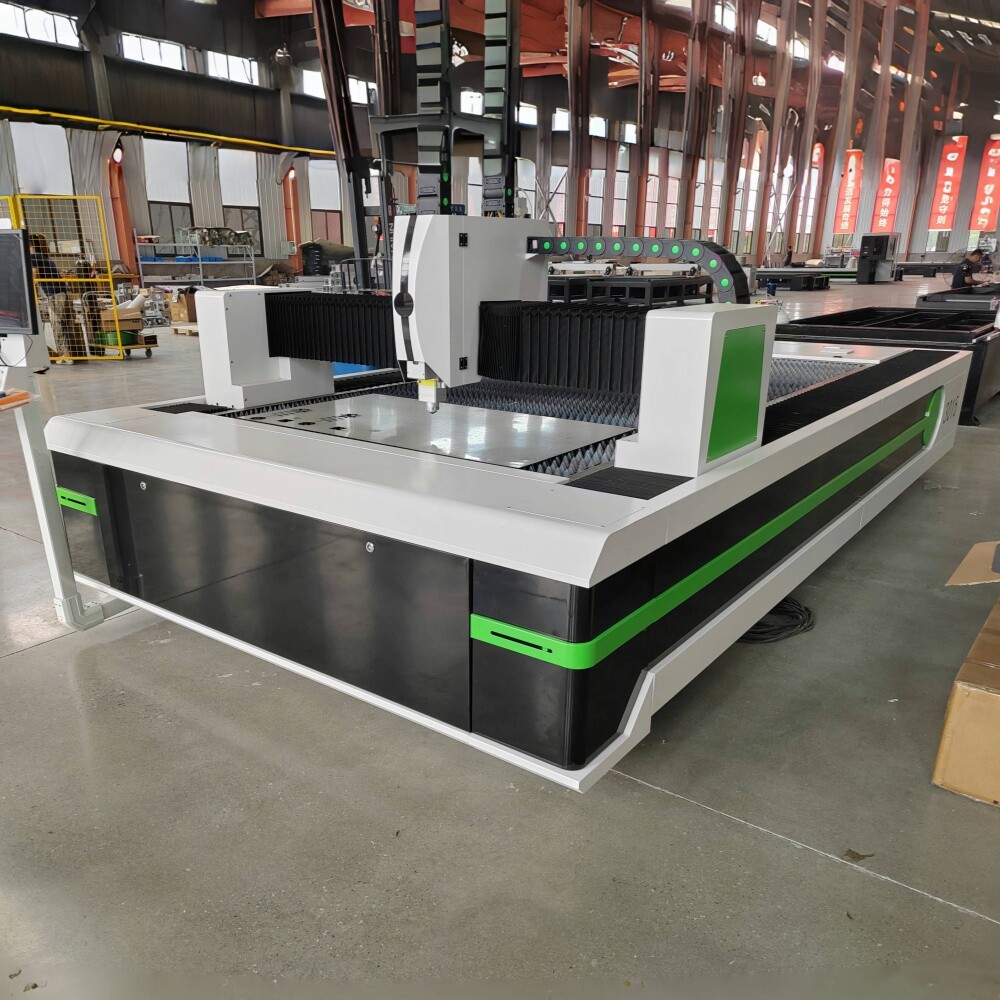

MingXing Laser Fiber Machine 3000mm x 1500mm cutting Area


[What to use it for]  MX-3015 metal sheet laser cutting machine is used to cut stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.; Application in automobile industry, sheet metal industry, furniture industry, auto parts,advertising industry, metals components and parts, etc.


[Intelligent Control System]  CypCut control system is a set of system software specially suitable for laser sheet metal cutting industry, easy installation, rich in functions.


[High work efficiency and processing accuracy] The auto focusing function makes it unnecessary to refocus when replacing plates, so as to improve work efficiency and machining accuracy;


[High stability]  At present, the mainstream bed structure has high stability. The application of stress relief annealing technology has high mechanical strength,It is resistant to high temperature and not easy to deform. The stiffener inside the pipe is reinforced and four supports are added. It does not shake during high-speed operation.



No.                                                                                   Performance index parameters


MX-3015
MX-4015
1Working area(length*width)3000mmX1500mm 4000mmX1500mm
1X-axis travel1500mm1500mm
3Y-axis travel3000mm4000mm
4Z-axis travel100mm  100mm
5X/Y axis positioning accuracy±0.04mm/m±0.04mm/m
6X/Y axis repeatable positioning accuracy±0.03mm ±0.03mm
7X/Y axis clearance0.015mm  0.015mm
8Acceleration0.8G  0.8G
9X/Y axis composite speed50m/min 50m/min
10Machine weight2000KG 2000KG
11Workbench maximum load1000KG  1000KG
12Complete machine footprint3000mm*5535mm*16303000mm*5535mm*1630
   13                Overall power protection level                         IP54                                         IP54
14Cooling methodWater cooling  Water cooling

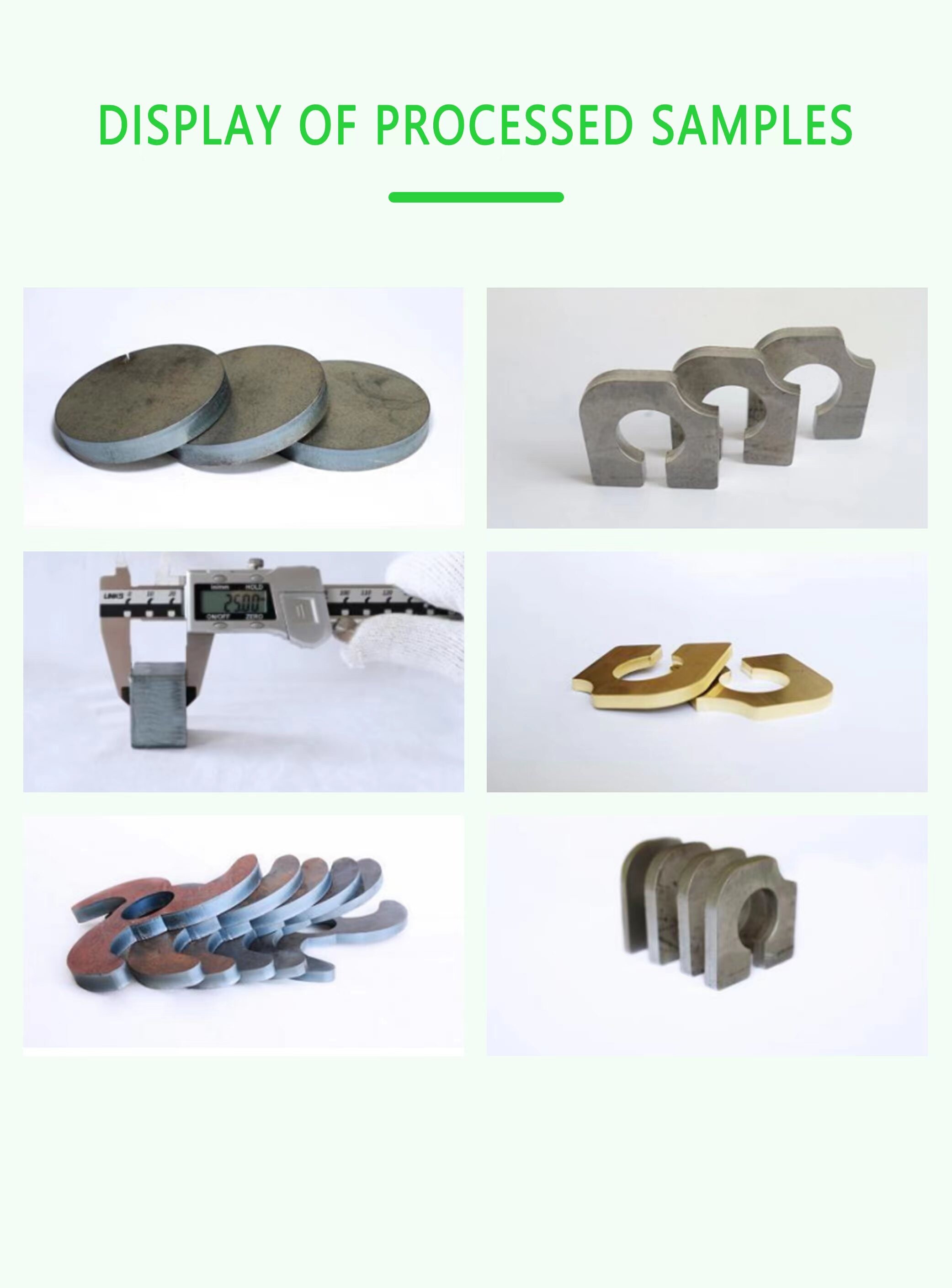

Sample display:
