When investing in industrial CNC machinery, understanding the specific configurations is critical to ensuring the equipment meets your production demands. The 1325 Standard CNC Router is a highly versatile and robust machine designed for precision engraving, cutting, and milling across a variety of materials.

Below is an in-depth breakdown of the machine's structural engineering, transmission mechanics, spindle varieties, and control software to help you make the best choice for your factory floor.

1. Machine Dimensions and Structural Integrity

A solid foundation is the key to precision CNC routing. This machine is built to handle standard 4x8 foot material sheets with ease.

• Working Area: The machine provides a spacious processing area of 1300*2500 mm.

• Overall Dimensions: The total physical footprint of the equipment measures 3122*2060*1596 mm

• Heavy-Duty Bed Construction: The machine bed is constructed using robust square tube welding. This ensures maximum rigidity, preventing vibration during high-speed operations.

• Logistics-Friendly Design: To significantly reduce shipping volumes and make factory installation easier, the support legs are fully detachable. Furthermore, the electrical control box is designed to be external and is also completely detachable.

2. Advanced Transmission and Motor Systems

To translate software designs into flawless physical products, the 1325 CNC router employs a high-precision multi-axis transmission setup.

• X and Y Axis Drive: Both the X-axis and Y-axis utilize a high-speed rack transmission system.

• Z Axis Drive: For precise vertical plunging and lifting, the Z-axis is equipped with a ball screw transmission.

• Motor & Reducer Setup: The machine utilizes a highly efficient motor and reducer combination , alongside a dedicated motor and gear box combination to ensure smooth torque delivery.

• Z-Axis Safety Feature: Crucially, the Z-axis is equipped with a specialized brake motor. This vital safety feature ensures that the heavy spindle does not abruptly drop and damage the material or the tool when the machine is powered off.

3. Spindle Motor Configurations

We understand that different materials require different cooling methods and power outputs. The 1325 model offers extensive spindle customization:

• Water-Cooled Spindles: Ideal for continuous, long-term operation, water-cooled spindles are available in multiple power ratings: 1.5kw, 2.2kw, 3.0kw, 3.2kw, 3.7kw, and 4.5kw. They are compatible with both 220V and 380V power supplies. When opting for a water-cooled setup, the machine comes equipped with a built-in 3200-model water chiller.

• Air-Cooled Spindles: For factories situated in cold climates or those looking for a maintenance-free cooling solution, air-cooled spindles are available. These are offered in higher power ranges, including 2.2kw, 3.5kw, 4.5kw, and 6.6kw , and also support both 220V and 380V setups.

4. Worktable Options for Material Fixation

Securing your workpiece is essential for accurate milling. The machine can be configured with two primary table types:

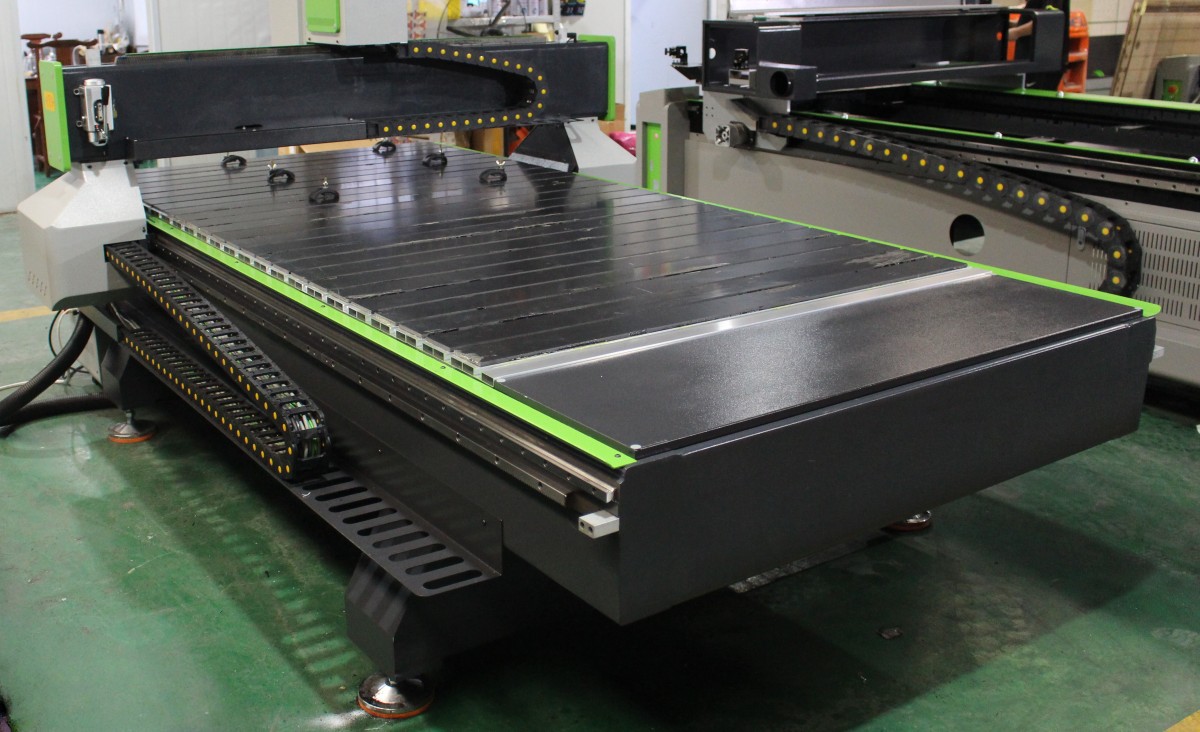

• Aluminum Profile Table: This is the standard, reliable setup using an aluminum profile table. It utilizes T-slot clamps to physically secure materials, making it ideal for heavy woods and thick acrylics.

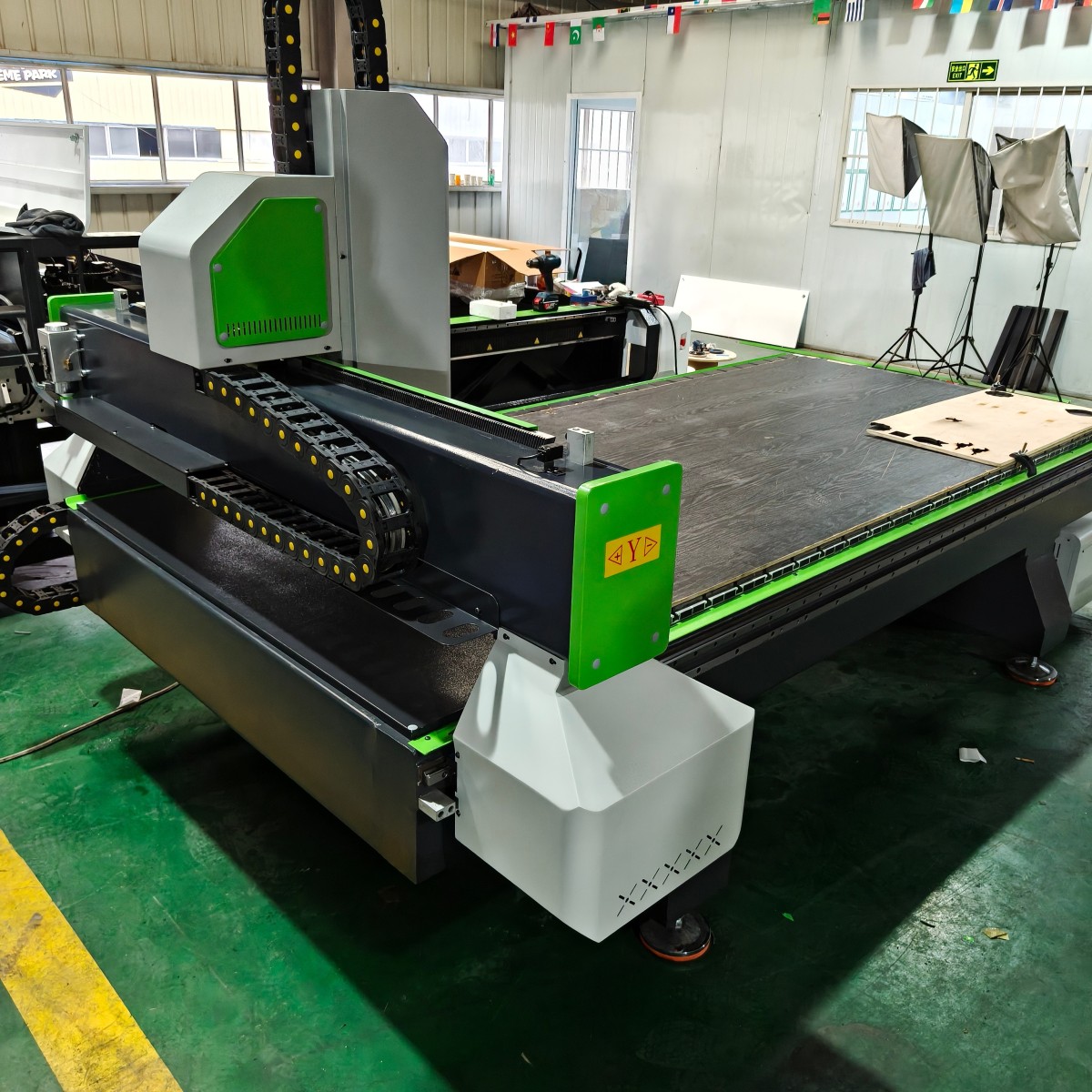

• Vacuum Adsorption Table: For fast material loading and unloading, a vacuum adsorption table is available as an option. This system uses powerful suction to hold down flat sheets, greatly improving efficiency for panel furniture processin

5. Industrial Control Systems

The user interface is what connects your operator to the machine. We offer two distinct control system pathways depending on your budget and operational preferences:

• RichAuto A11 System (Highly Recommended): This machine is primarily outfitted with the Ruizhi Tianhong (RichAuto) A11 control system. This premium option supports complete offline operation, meaning no dedicated PC is required next to the machine. Operators can directly control the router using the handheld DSP controller , which features a user-friendly bilingual interface in both English and Chinese.
• Weihong System (Budget Alternative): For buyers strictly focused on initial cost, a pirated Weihong system is an available cheap alternative. However, please note that it requires a constant physical connection to a computer and relies on the outdated Windows XP operating system to function.

6. Comprehensive CNC Tooling Compatibility

The true versatility of the 1325 CNC router lies in its ability to utilize a massive variety of cutting tools to achieve different profiles, chamfers, and pocketing strategies. The machine is fully compatible with standard industrial tooling, including:

• Single-flute spiral milling cutters

• Flat bottom pointed cutters

• Bottom clearing milling cutters (surfacing bits)

• V-type cutters for 3D sign making and chamfering

• Double-flute milling cutters

• Double-flute spiral milling cutters
